Three Story Townhome Plan F1028 B

Additional information

Foundation Width

Foundation Depth

SQFT

,

Floors

Front Door

Garage

,

Master

,

Living

,

Cars

Cantilever

Version

B1.1, B2.1

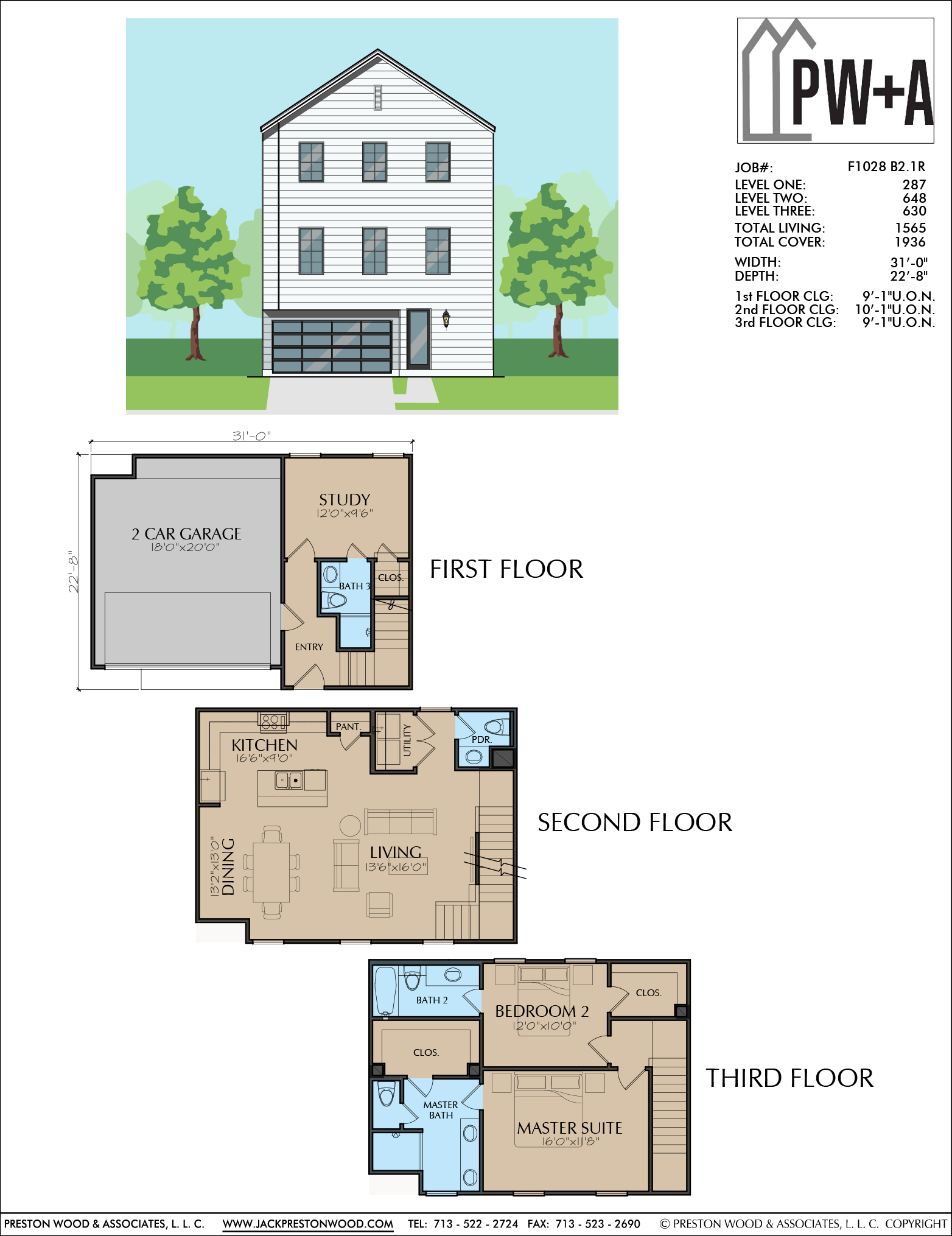

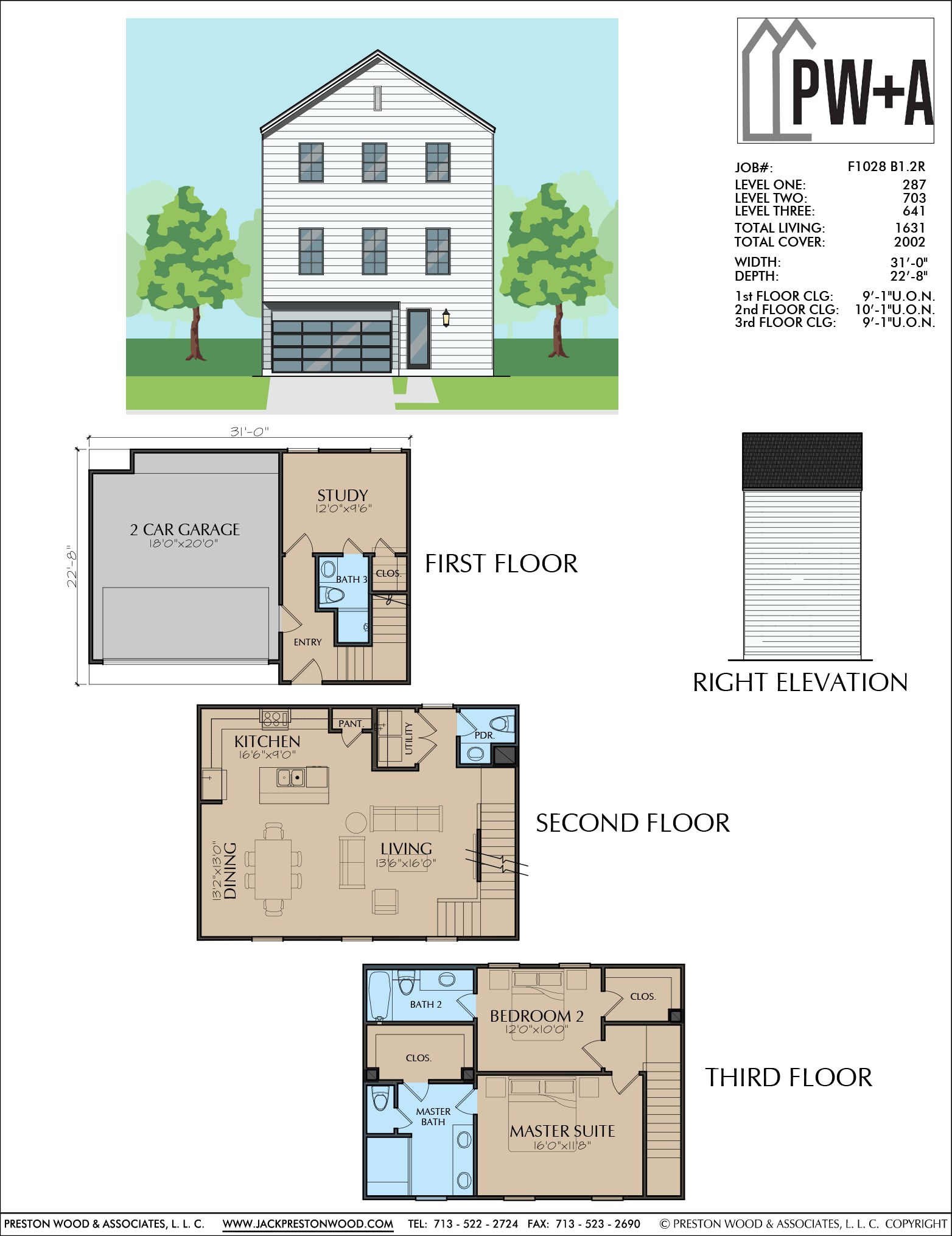

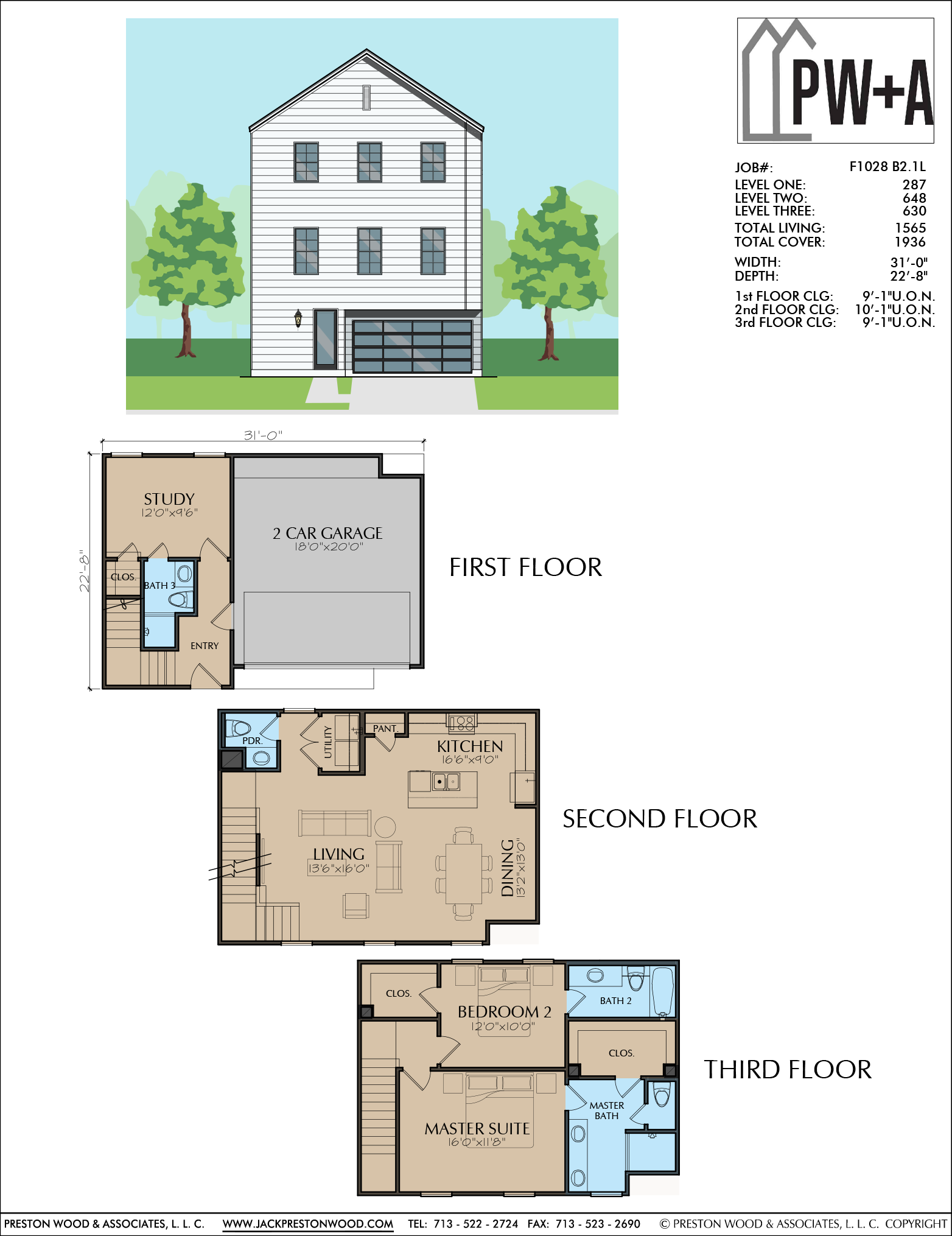

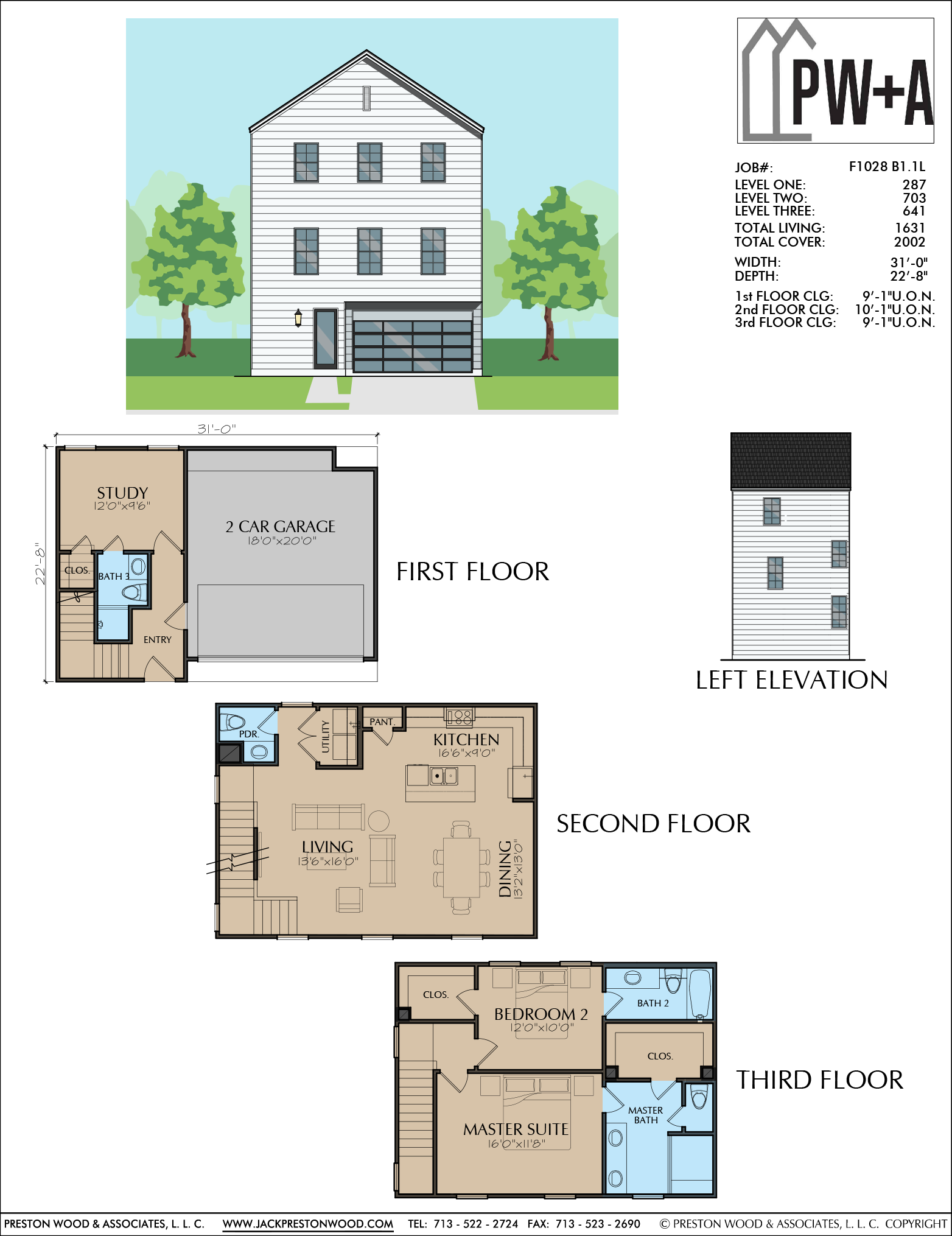

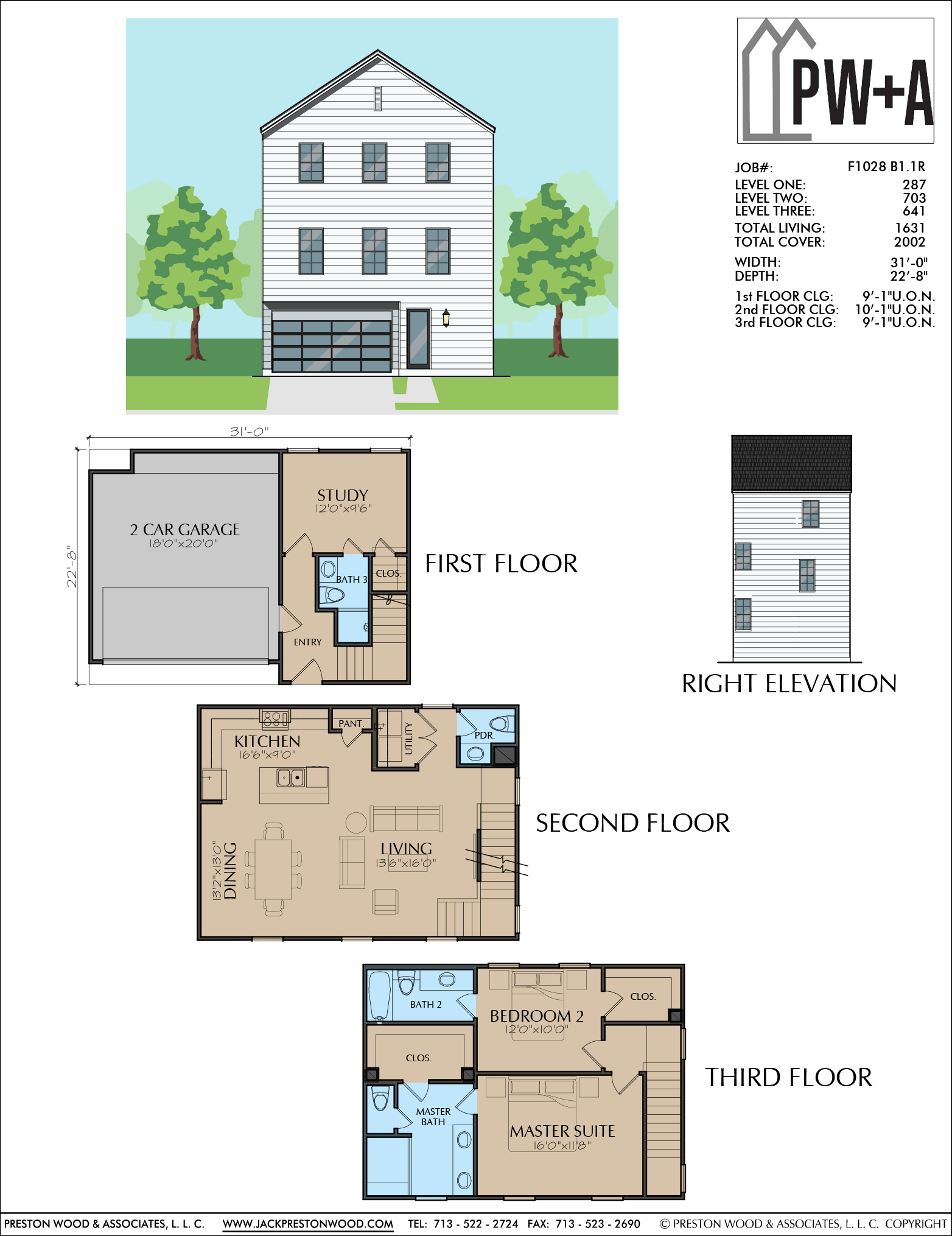

This townhome plan has a width of 31′-0” and a depth of 22′-8”. It includes three bedrooms and 2 1/2 baths. Highlights include the spacious master suite and the open-concept living area! Version B2.1 has a slightly lower square footage that B1.1 due to an indent on the second and third floors. This plan also pairs well with F1028 A1.1 for larger projects.

  • LEVEL ONE: 287
  • LEVEL TWO: 652 (B1.1), 648 (B2.1)
  • LEVEL THREE: 635 (B1.1), 630 (B2.1)
  • TOTAL LIVING: 1574 (B1.1), 1565 (B2.1)

What’s included with your plan:

  • Reproducible PDF, Delivered Within 48 Hours
    •  Floor Plans
    •  Elevations
    •  Sections
    •  Millwork (depending on plan)
    •  Electrical Plans
    •  Foundation Outline
    •  Roof Plan
    •  General Detail Sheet
    •  Each Plan is Single Use

$1,500.00
