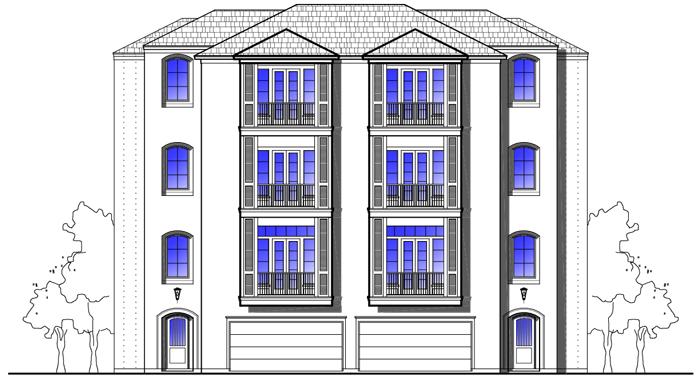

Four Story Duplex Townhouse Plan D5160 u5&u6

Additional information

Building Type

Cantilever

Cars

Foundation Depth

Floors

Front Door

Garage

,

Living

,

Master

,

SQFT

Vendor

Foundation Width

This duplex townhome plan has 6224 square ft. of living space. This townhouse plan design has a total depth of 23′-6″ and a total width of 67′-10″.

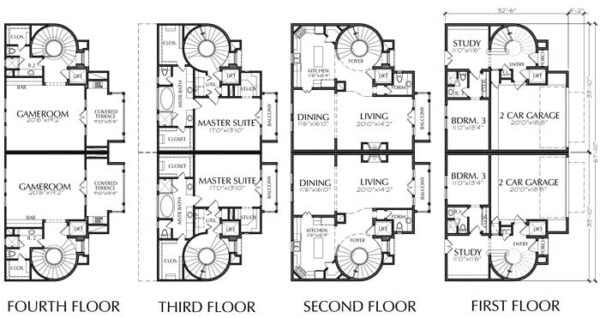

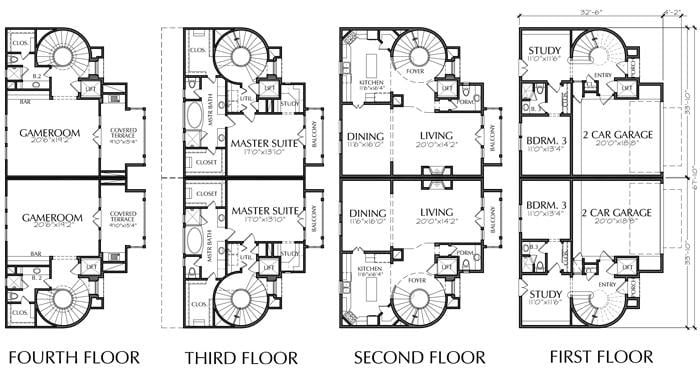

UNIT 3, UNIT 4

  • LEVEL ONE: 607, 607
  • LEVEL TWO: 1012, 1012
  • LEVEL THREE: 843, 843
  • LEVEL FOUR: 600, 604
  • TOTAL LIVING: 3062, 3062

This town home plan is sold as part of a multi-unit building, for single floor plan purchases or plan modifications please call us.

What’s included with your plan:

  • Reproducible PDF, Delivered Within 48 Hours
    •  Floor Plans

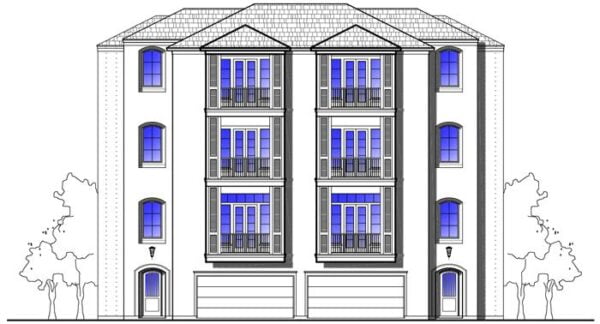

    •  Elevations
    •  Sections
    •  Millwork (depending on plan)
    •  Electrical Plans
    •  Foundation Outline
    •  Roof Plan
    •  General Detail Sheet
    •  Each Plan is Single Use

$3,000.00
