Four Story Duplex Townhouse Plan D5160 u3&u4

Additional information

Building Type

Cantilever

,

Cars

Depth

Floors

,

Front Door

Garage

,

Living

,

Master

, ,

SQFT

,

Vendor

Width

CAN’T FIND WHAT YOU’RE LOOKING FOR?
Modify an existing plan

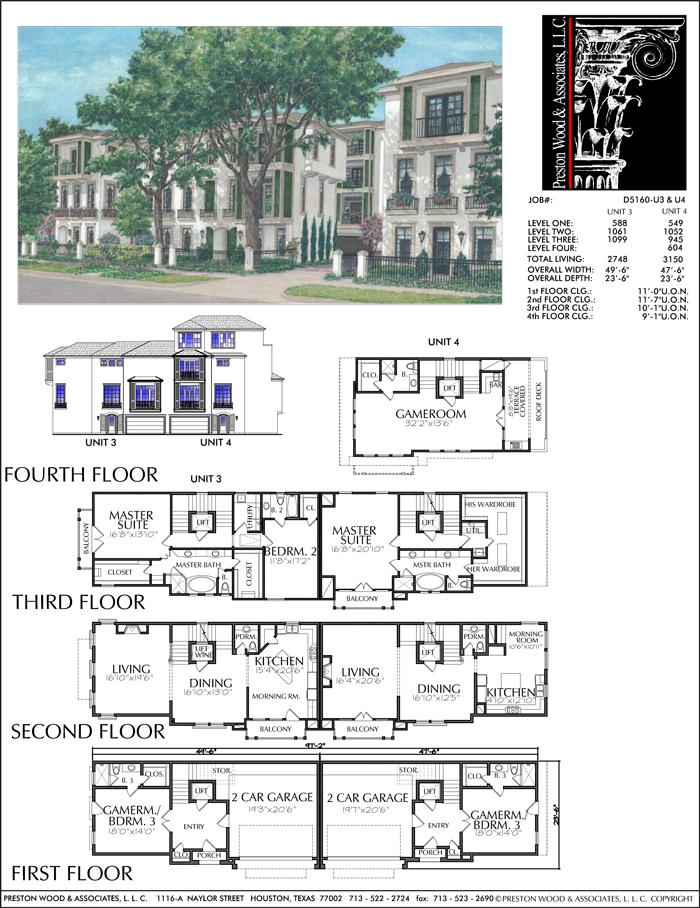

This duplex townhome plan has 5898 square ft. of living space. This townhouse plan design has a total depth of 23'-6″ and a total width of 91'-2″.

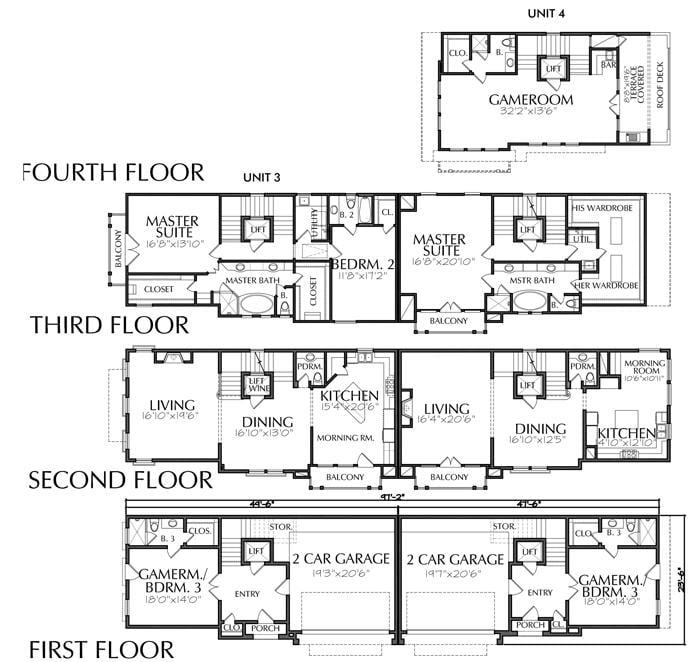

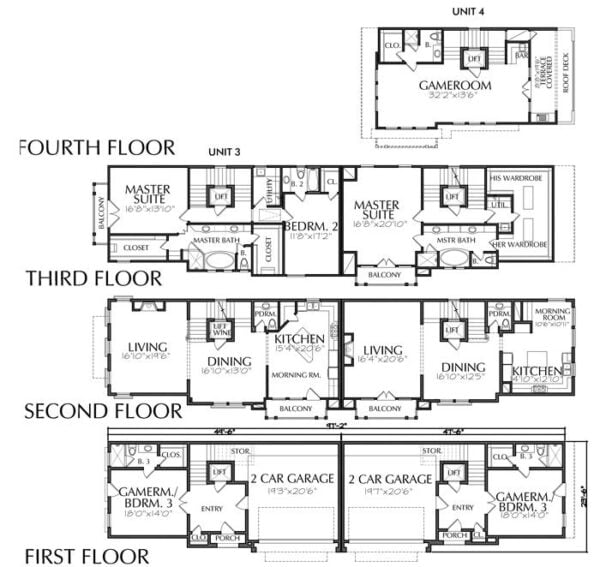

UNIT 3, UNIT 4

  • LEVEL ONE: 588, 549
  • LEVEL TWO: 1060, 1052
  • LEVEL THREE: 1099, 945
  • LEVEL FOUR:             604
  • TOTAL LIVING: 2748, 3150

This town home plan is sold as part of a multi unit building, for single floor plan purchases or plan modifications please call us.

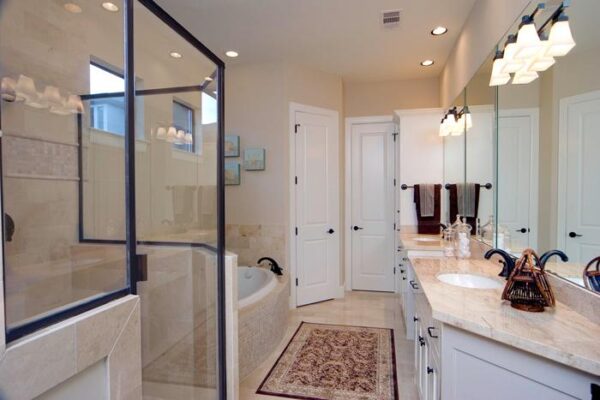

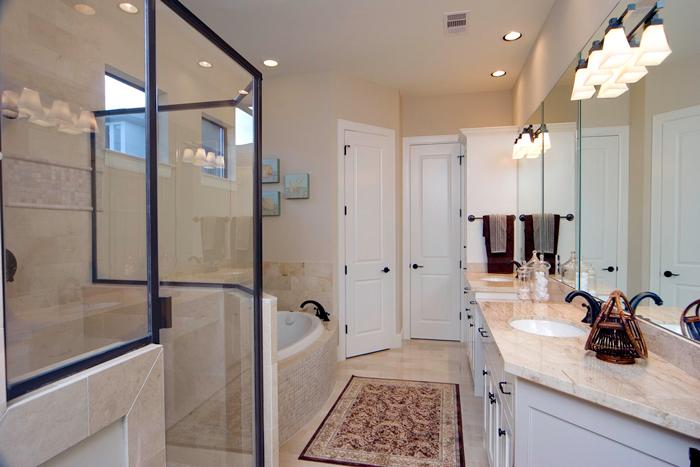

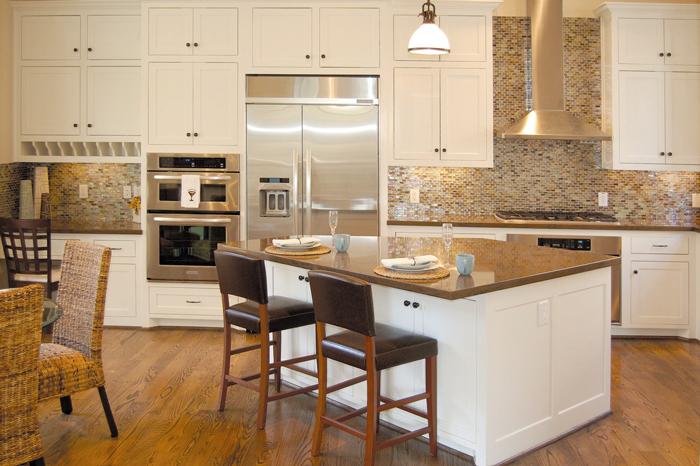

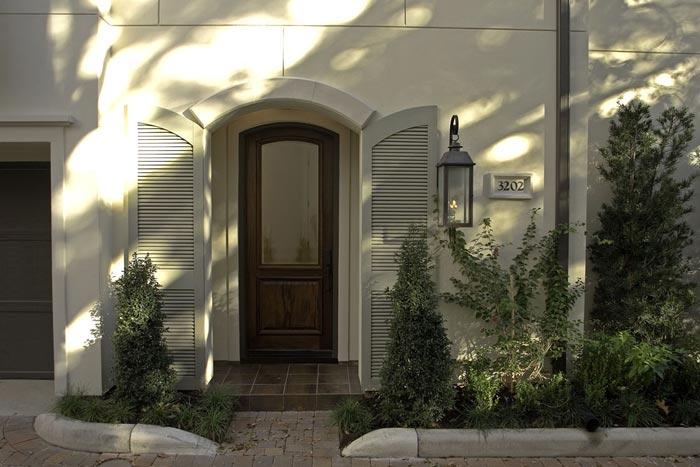

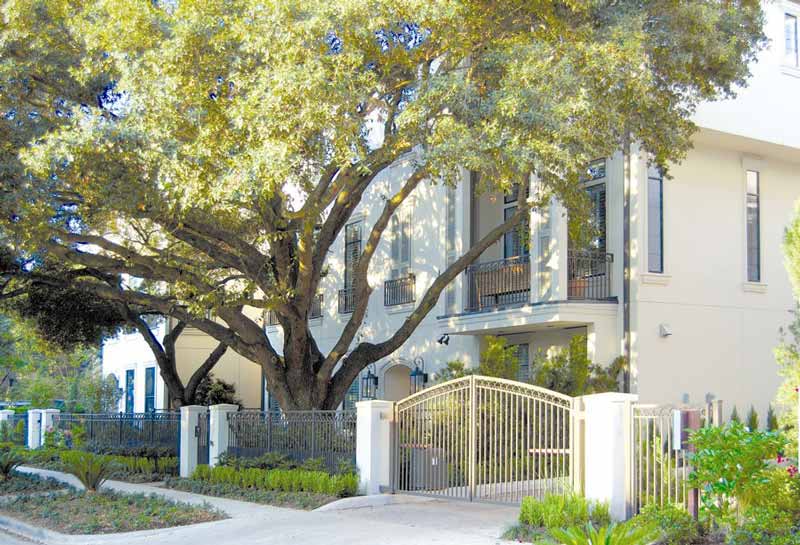

Click here to view a gallery of this project.

For more info on our plans, please call 713-522-2724 or E-mail us.
click here for more information on Duplex Plans.
Preston Wood and Associates (PW+A) is a member of the “American Institute of Building Design.” The “AIBD” is a national organization with chapters in every major U.S. city including Charlotte, Huntsville, Fayetteville, Norfolk, and Madison.

    What’s included with your plan:

    • Reproducible PDF, Delivered Within 48 Hours
      •  Floor Plans

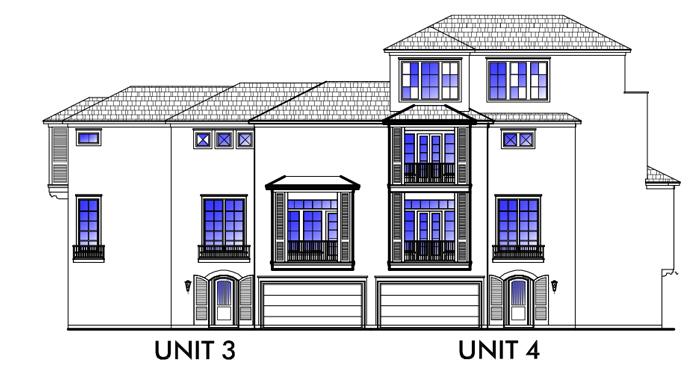

      •  Elevations
      •  Sections
      •  Millwork (depending on plan)
      •  Electrical Plans
      •  Foundation Outline
      •  Roof Plan
      •  General Detail Sheet
      •  Each Plan is Single Use

    $3,000.00
