This duplex plan has 3718 square ft. of living space. This townhouse plan design has a combined depth of 62'-6″ and a width of 49'-4″.

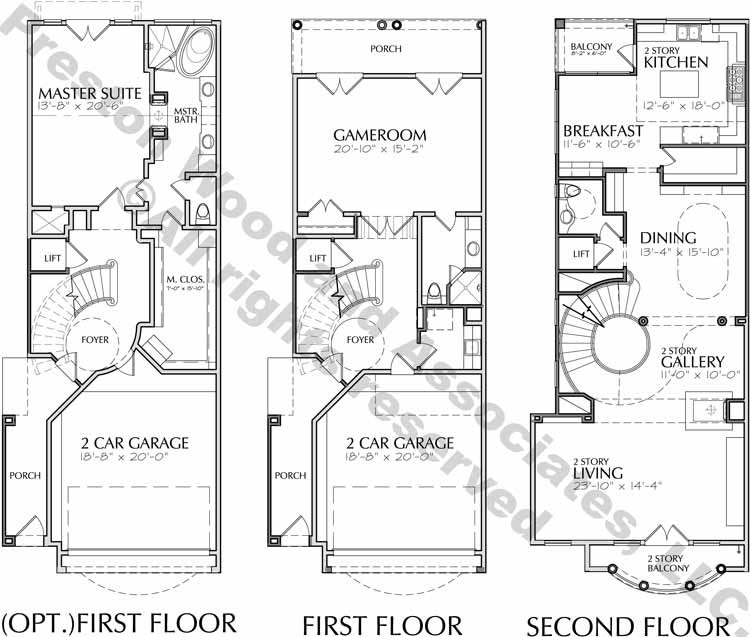

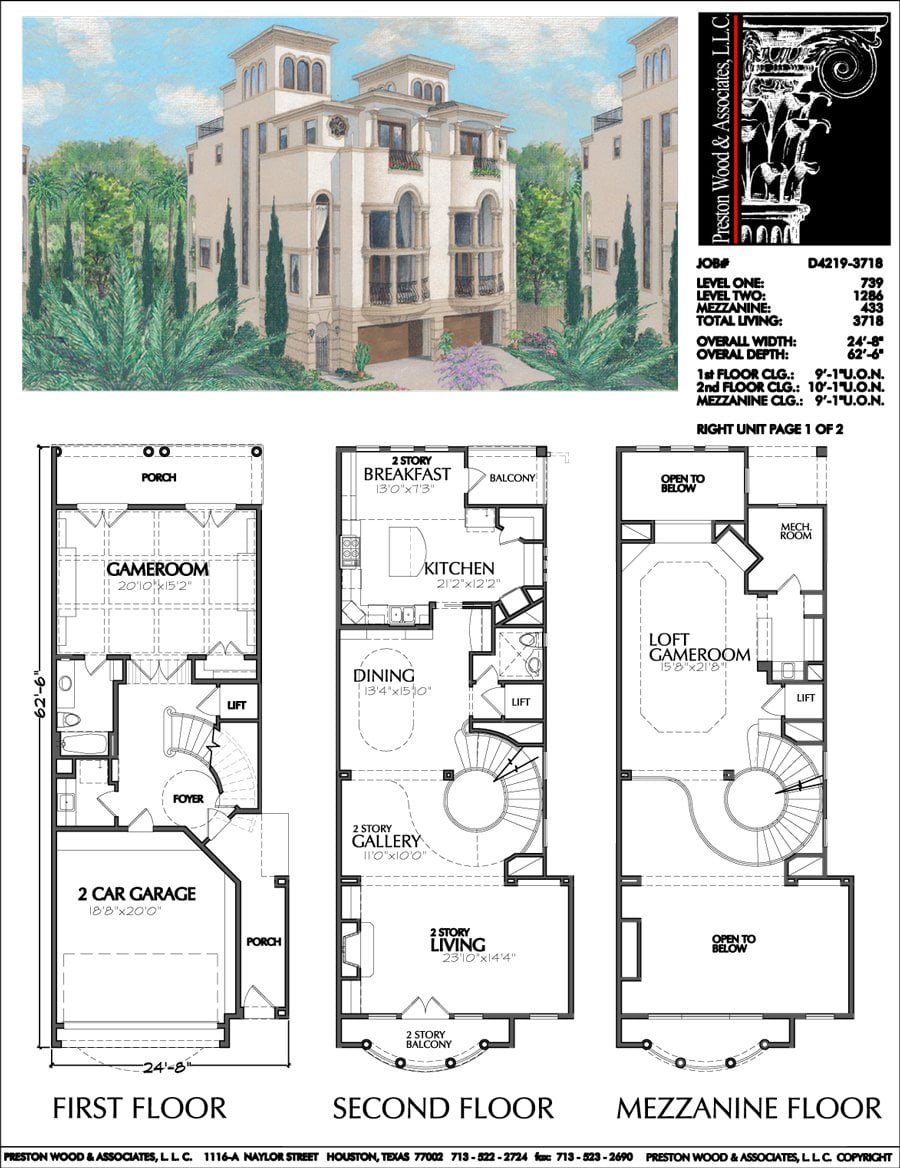

  • LEVEL ONE: 739
  • LEVEL TWO: 1236

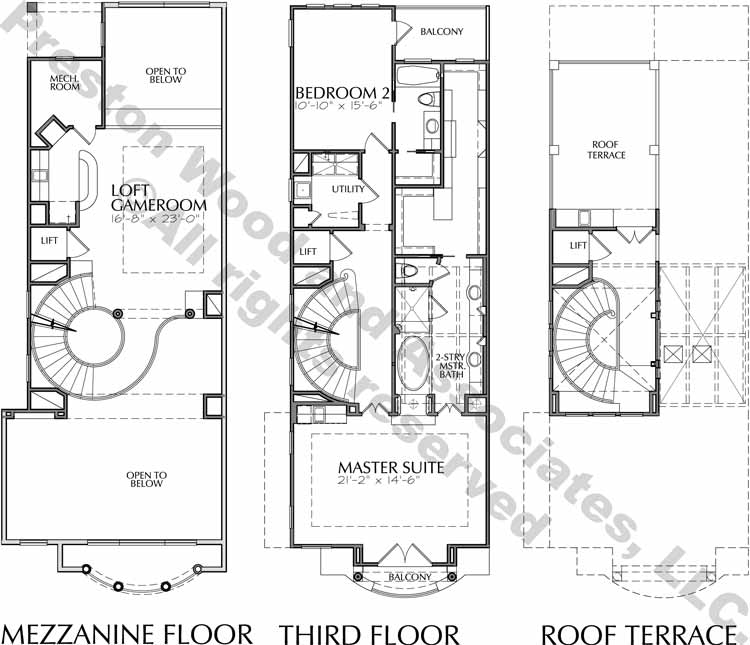

  • MEZZANINE: 433

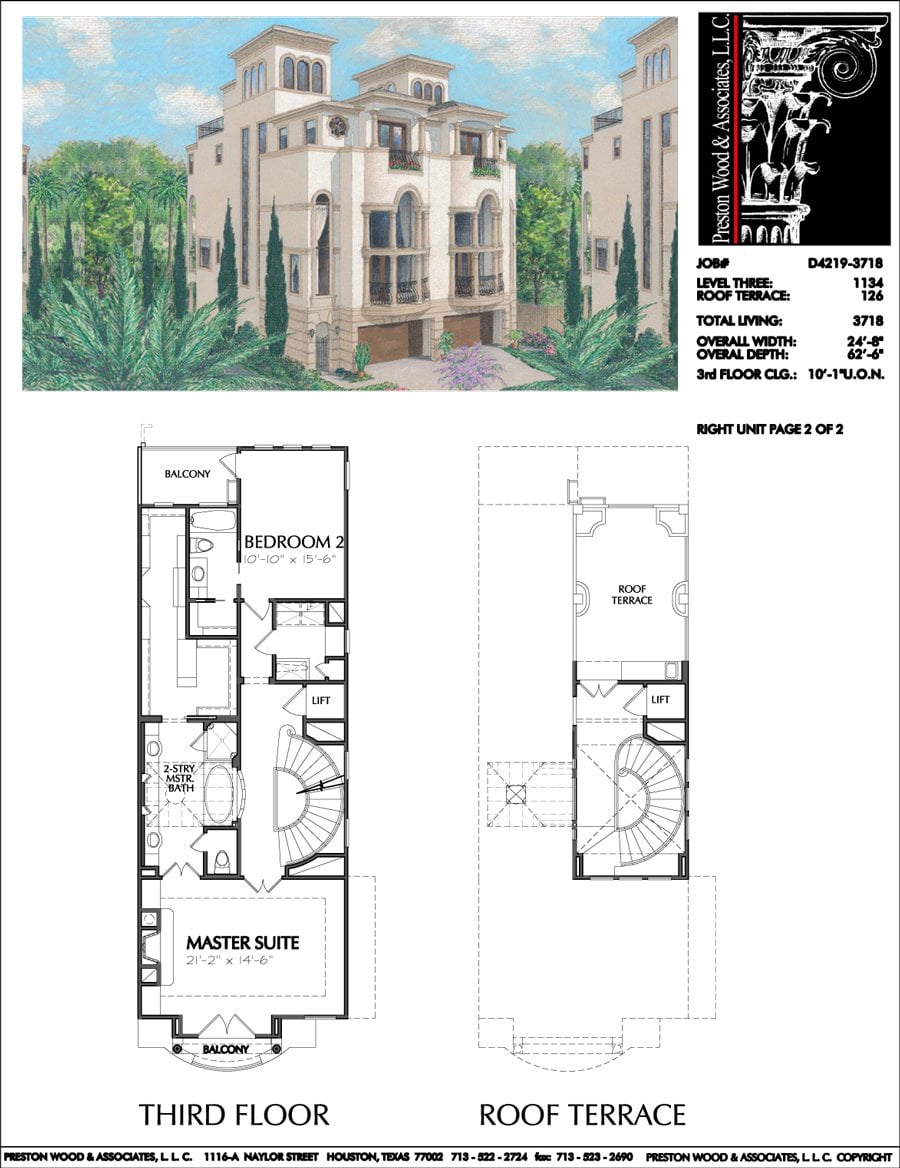

  • LEVEL THREE: 1134
  • ROOF TERRACE: 126
  • TOTAL LIVING: 3718

*THIS PLAN IS NOT AVAILABLE IN HOUSTON.

This town home plan is sold as part of a multi unit building, for single floor plan purchases or plan modifications please call us.

For more info on our plans, please call 713-522-2724 or E-mail us.
click here for more information on Duplex Plans.
Preston Wood and Associates (PW+A) is a member of the “American Institute of Building Design.” The “AIBD” is a national organization with chapters in every major U.S. city including Charlotte, Huntsville, Fayetteville, Norfolk, and Madison.

What’s included with your plan:

  • Reproducible PDF, Delivered Within 48 Hours
    •  Floor Plans
    •  Elevations
    •  Sections
    •  Millwork (depending on plan)
    •  Electrical Plans
    •  Foundation Outline
    •  Roof Plan
    •  General Detail Sheet
    •  Each Plan is Single Use

$3,000.00
